Discover the most advanced way to preserve food and ignite conversation. With revolutionary innovations like seamless 3DLighting, MetalCool interior and a FreshZone drawer, Dacor brings beauty and performance to life like never before.
Precise Cooling Technology
Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor.

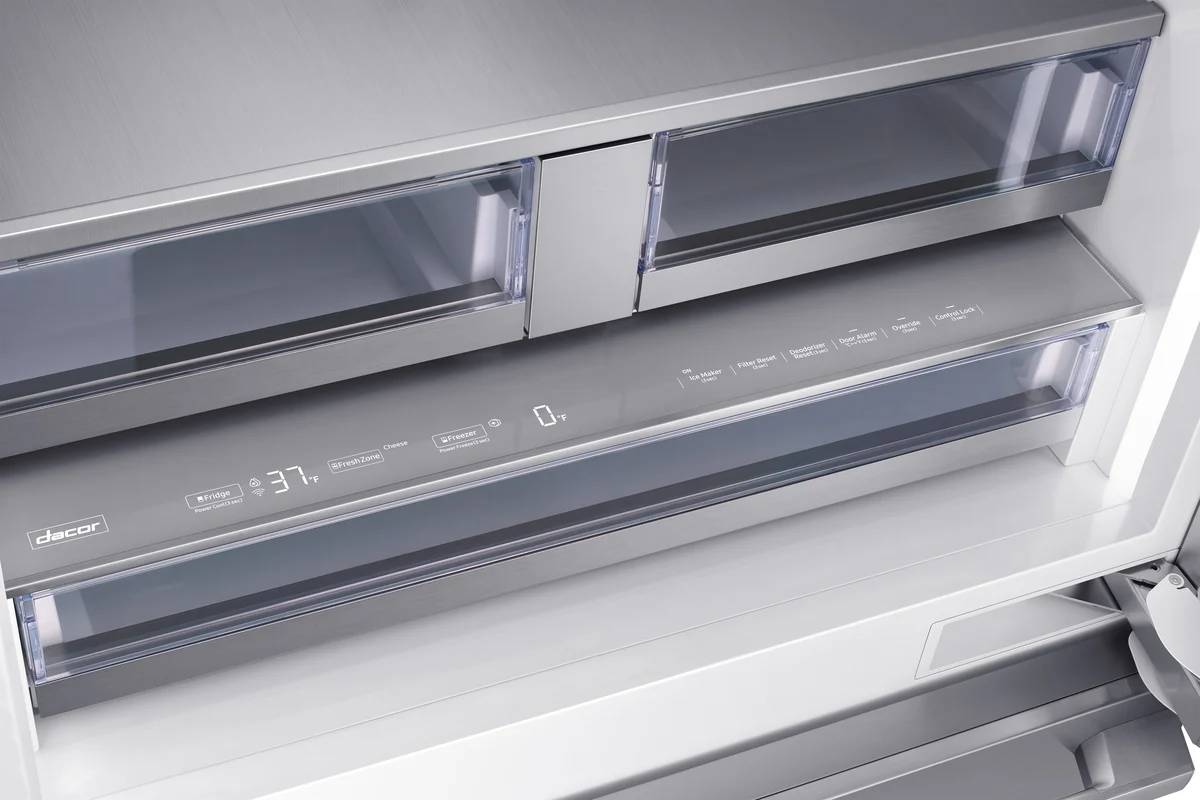

Hidden Touch Control Panel
Touch to reveal a display that regulates temperature to preserve freshness

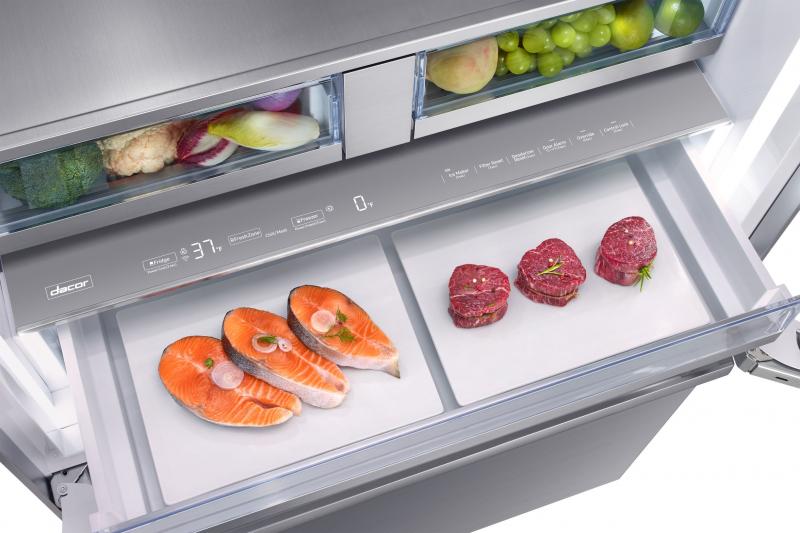

Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.
Best In Class Food Preservation
Freshness is best maintained in a constant temperature and high humidity environment. Dacor offers the best preservation system in the industry, with the tightest temperature control of any leading brand with unmatched humidity levels.
Designed to harmoniously integrate luxury conveniences with an everyday lifestyle. Every feature is created with intention to provide convenience at your fingertips with an experience second to none.
Double Cooling Technology
Powered by a digital inverter compressors and two evaporators to keep food fresher longer by preventing the mixture of moist refrigerator air with the dry freezer air. In addition to the variable control capability of the Digital Inverter Compressor, we are able to achieve a higher humidity in the refrigerator space.
Energy Efficient and Environmentally Friendly
Dacor uses R600a refrigerant, which is up to 40% more efficient than traditional R134a. R600a is less harmful to the environment and will be the new EPA mandated standard starting in 2020.
Superior Insulation Technology
Vacuum insulated panels and high density insulation for consistent temperature performance and best in class food preservation

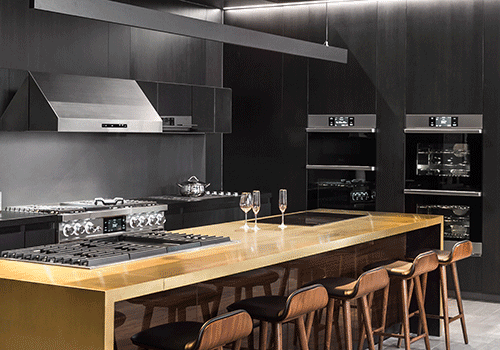

True Centerpiece of the Kitchen
Every line, and every detail designed intentionally to inspire creativity
Designed for Seamless Integration
Counter height freezer lines allow for harmonious designs without visual interruptions
Integrates beautifully into any kitchen design. Comes panel-ready for custom wood paneling, or choose from silver or graphite stainless steel finishes.

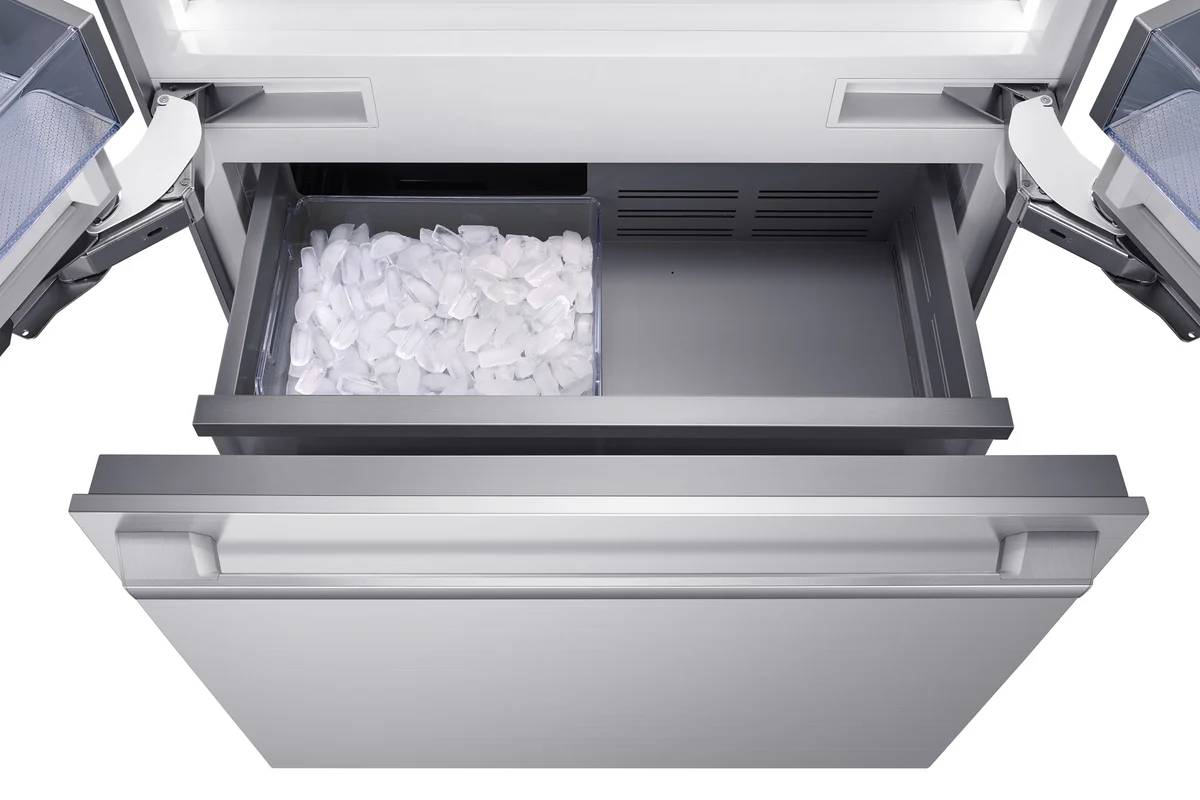

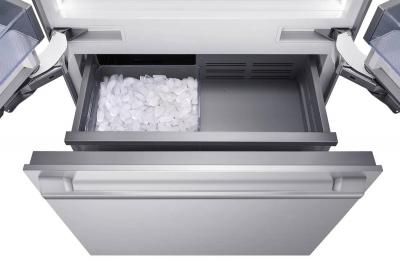

Dual Ice Maker
Creates standard cubes
Internal Water Dispenser
Serves fresh, filtered water and easily fill cups or pitchers.
Crafted with authentic, high-quality materials, Dacor’s attention to detail is unrivaled. Transforming the finest raw materials with our meticulous techniques into one of a kind centerpieces.
Luxury Material Selection

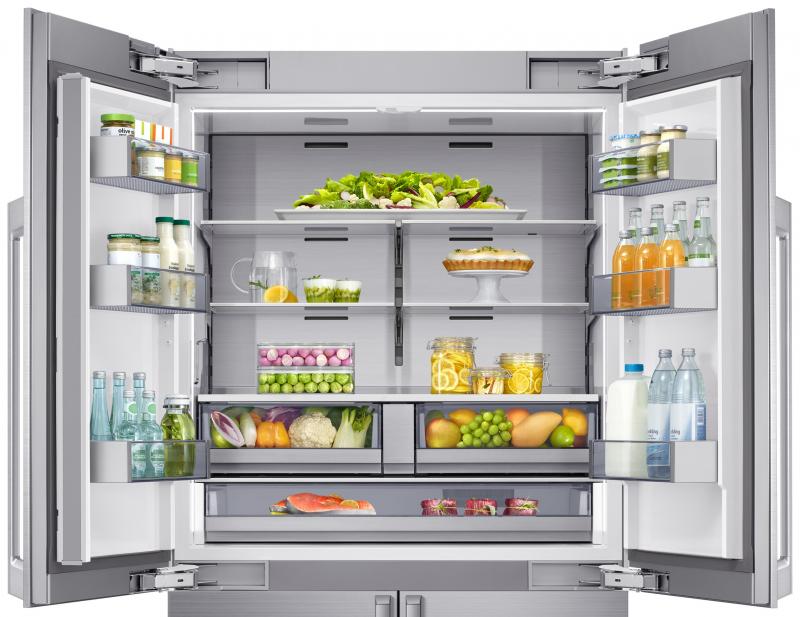

Featuring an all stainless steel interior, Dacor's French Door Refrigerators are a beautiful addition to your kitchen.
The deep, beautiful color of the graphite stainless steel is achieved through arduous electrophoretic deposition and anodizing processes, that ensure a durable, corrosion resistant, consistent and highly transparent result. Each component is handled part by part, ensuring true craftsmanship and artisan detail.

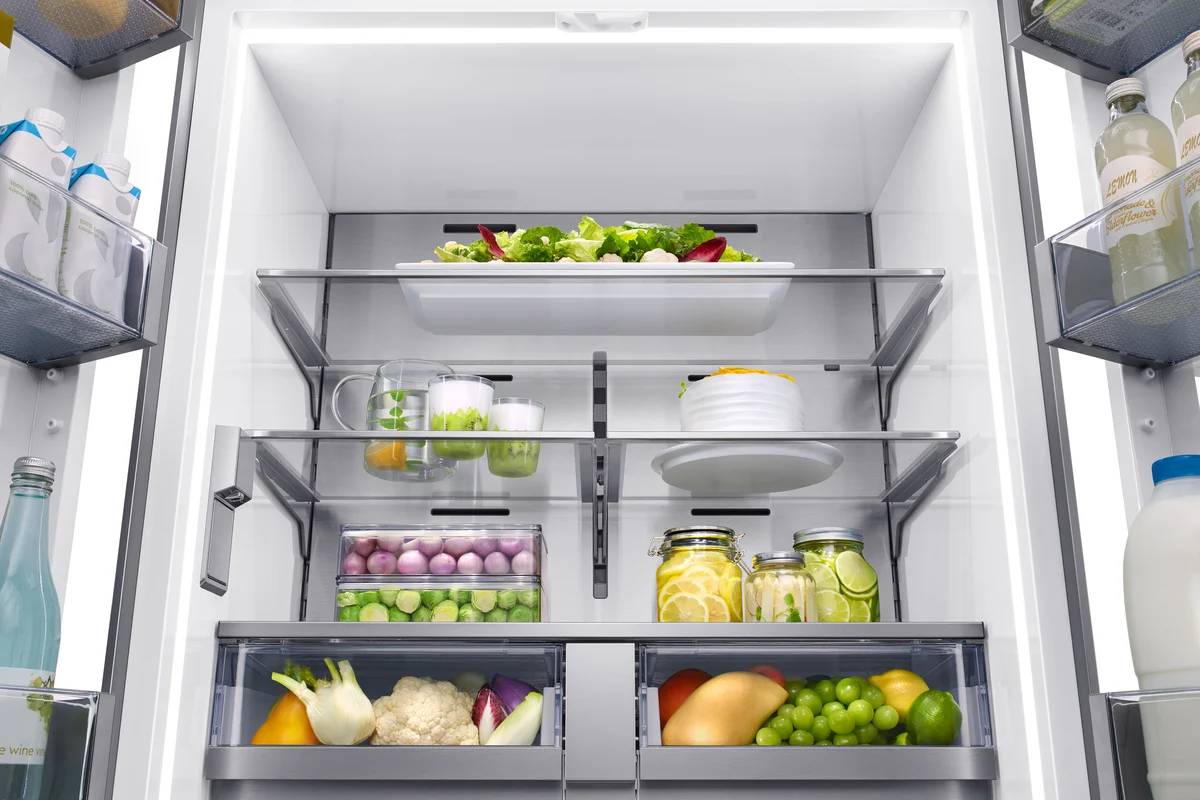

|Full Width Shelves – Refrigerator: 2 ea
Adjustable Shelves – Refrigerator: 2 ea
Shelf Material: Tempered Glass Shelves with Metal Trim
Full Extension Drawers at 90° Door Opening Angle: Yes
FreshZone Drawer: Yes - Cheese (37°F) / ColdDrinks (33°F) / Meat (29°F)
Humidity Control Drawer: 2 ea
Door Bins: 6 ea
|Total Unit Gross Capacity (cu. ft.) – AHAM: 21.3
Refrigerator Gross Capacity (cu. ft.): 14.5
Freezer Gross Capacity (cu. ft.): 6.8
|Custom Panel Dimensions
Ref: 17 3/4" X 49 3/16" (W x H)
Frz: 35 3/4" x 30 9/16" (W x H)
35 3/4” x 83 3/8” x 23 13/16” (W x H x D)
Please refer to the Installation Instructions for more detailed dimensions.

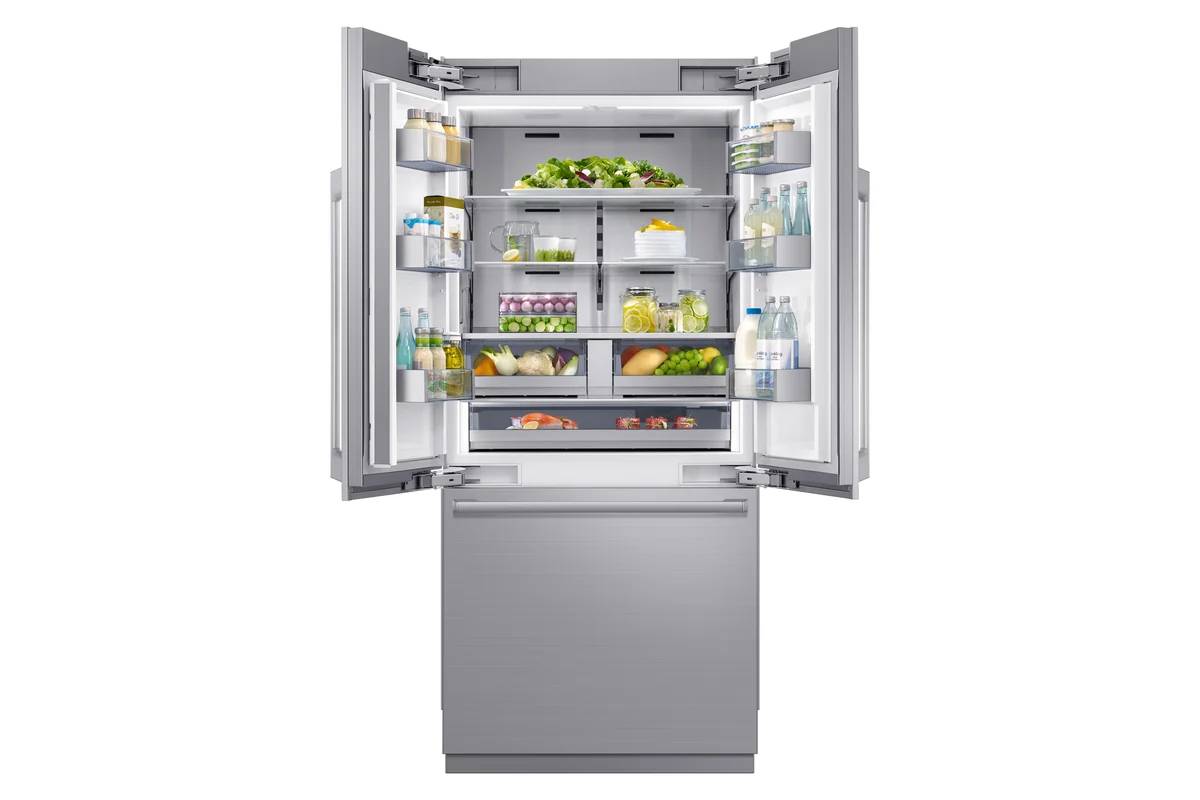

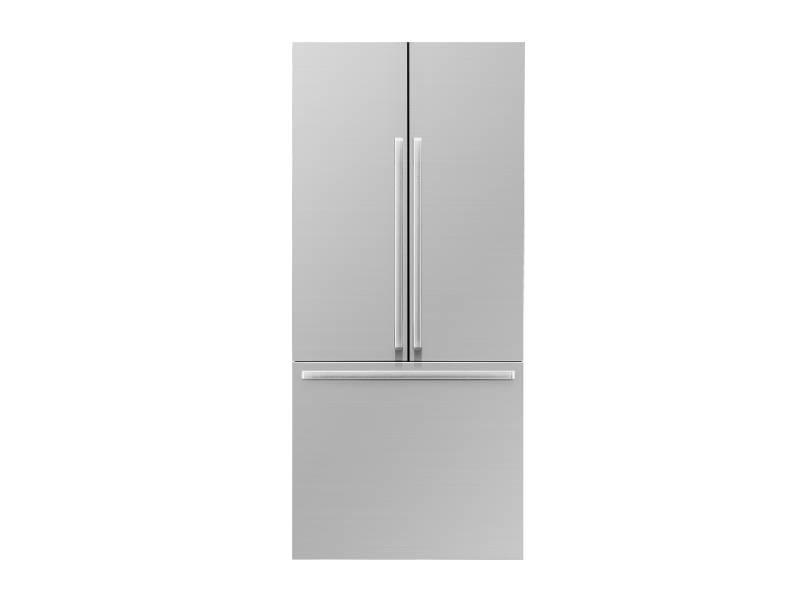

|DRF365300AP - 36" Built-In French Door
|Filter by Category
|French Door Refrigerators
|RAF36AHAASR - French-Door Refrigerator Pro Panel Kit: Silver Stainless
RAF36ACAASR - French-Door Transitional Refrigerator Silver Stainless Panel Kit
RAF36AMAASR - French-Door Contemporary Refrigerator Silver Stainless Panel Kit
RAF36AMAAMS - French-Door Contemporary Refrigerator Graphite Panel Kit
RAC00WFAAAA - Water Filter
RAC00DFAAAA - Deodorizing Filter
|Electrical: 115V, 60Hz, 3A
|ENERGY STAR Qualified: Yes
Annual Energy Consumption: 549 kWh
|Refrigerator: 34°F (1°C) to 44°F (7°C)
Refrigerator - Power Cool: 34°F (1°C)
FreshZone Drawer: 37°F (3°C) / 33°F (1°C) /29°F (-1°C)
Freezer: 5°F (-15°C) to -8°F (-23°C)
Freezer - Power Freeze: -8°F (-23°C)
Temperature Fluctuation: ±0.9°F* (±0.5°C*)
