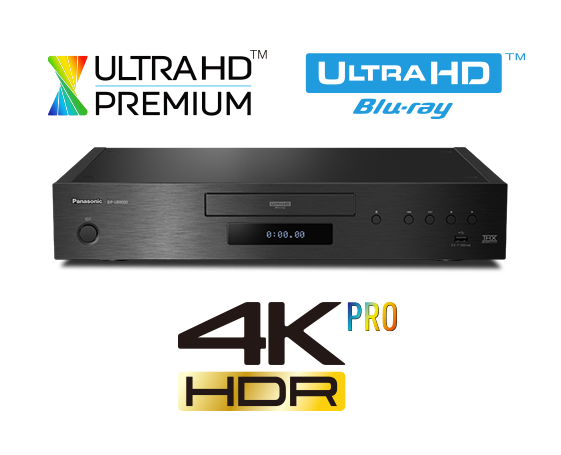

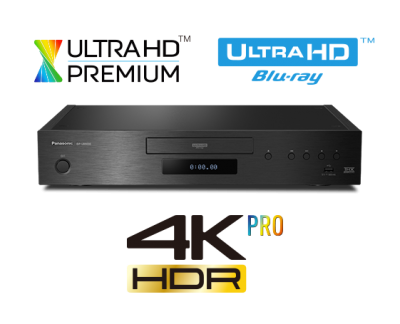

Unique imaging technologies for a Hollywood Cinema Experience

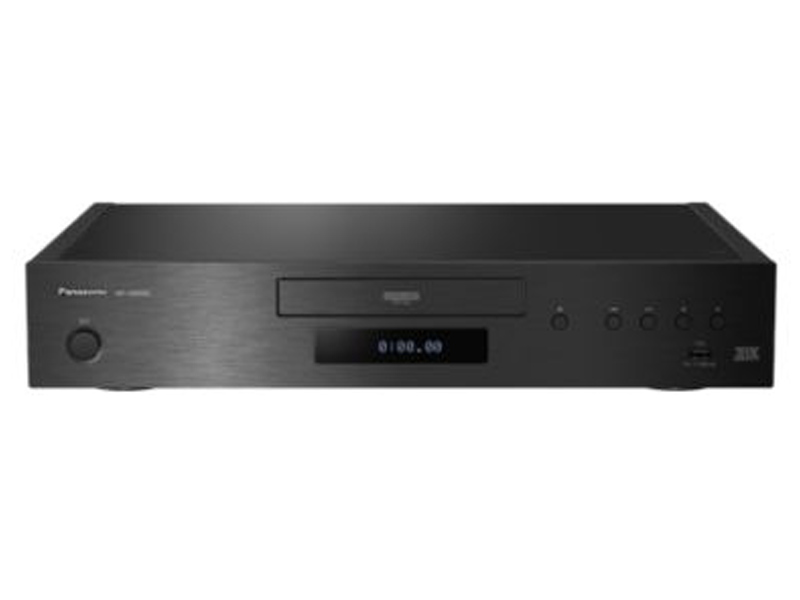

Panasonic's 4K PRO HDR model Ultra HD Blu-ray Player features an HCX Processor for Ultra HD Blu-ray packed with original imaging technologies for stunning picture quality. The precise colours and HDR reproduction that form the essential elements of Ultra HD are the basis of high-defifinition images. They bring you a whole new viewing experience that you've never had before. * HCX stands for Hollywood Cinema Experience. * Supervised by Panasonic Hollywood Laboratory.
Experience stunning 4K pictures
Panasonic Ultra HD Blu-ray Players support multiple HDR formats, such as HDR10, which is the standard HDR format for films, and UHD Blu-ray discs. They newly support HDR playback of HDR10+TM dynamic metadata, the next-generation standard. And they are compatible with Dolby VisonTM and Hybrid Log-Gamma. The synergistic effect achieved with Panasonic's original high-quality image technologies enables even more precise image expression.
HDR optimiser for greater content clarity
Panasonic's original image processing technologies achieve HDR images with higher definition than before. Tone mapping is used to adjust the brightness level of the content. And even HDR images from ordinary HDR10 and TV footage, which do not support special new formats like HDR10+ and Dolby Vision, provide optimal playback.
Stunning colour and details
4K High-Precision Chroma Processing Technologies from Panasonic Hollywood Laboratory, the base for Blu-ray Disc Research & Development, are applied to Panasonic‘s unique “4K High Precision Chroma Processing.” 4K image colour signals (4:2:0) are interpolated into 4K (4:4:4) by a multi-tap chroma process, for natural textures and depth.
THX®-certified images and sounds This THX®-certified model reproduces the finely nuanced colours and rich, detailed images that the film creator intended, and achieves lifelike surround sound. You can watch movies at home in comparable quality that you enjoy at cinema. * THX and the THX logo are trademarks of THX Ltd., registered in the United States and other countries.
Maximum vibration reduction for a premium sound quality

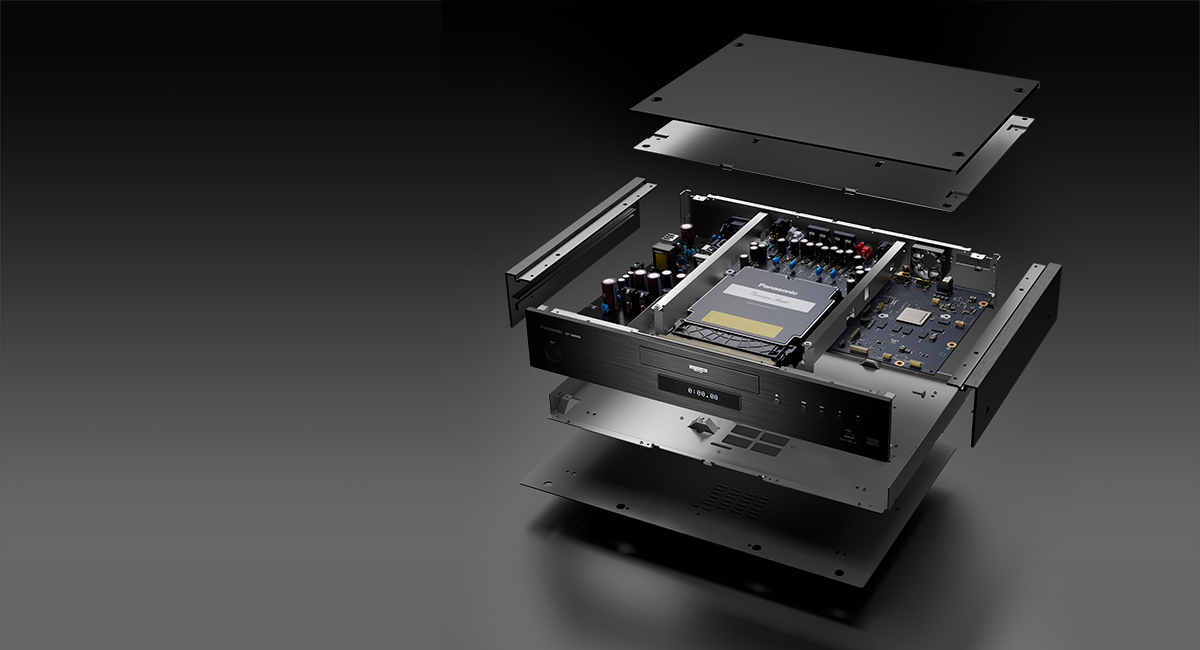

A newly developed base with a 3-dimensional, thick steel plate fixes the optical disc drive to the centre of the 2-layer chassis to reduce vibration and noise during disc rotation. And thick aluminium is used on the front and side panels. This raises the rigidity of the chassis, and reduces vibration.
Clear sound with minimal noise

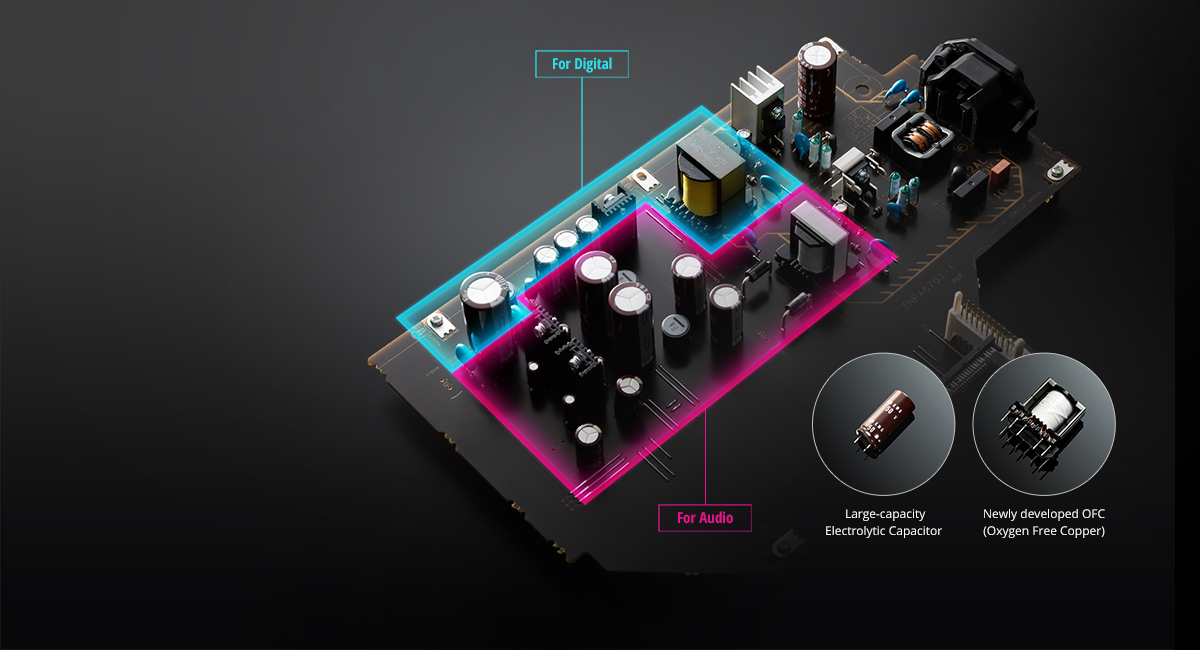

AC/DC Conversion Circuit The main power supply, which provides power to the optical drive and video signal processing circuits, generates a variety of low- to high-frequency noises. These occur, for example, when driving the motor during disc playback, accessing memory, and communicating between peripheral circuits. By separating the power for the audio D/A converter and analogue output circuit at their origin, the noise effects are reduced. In addition, soft switching control lowers the noise of the power supply itself.

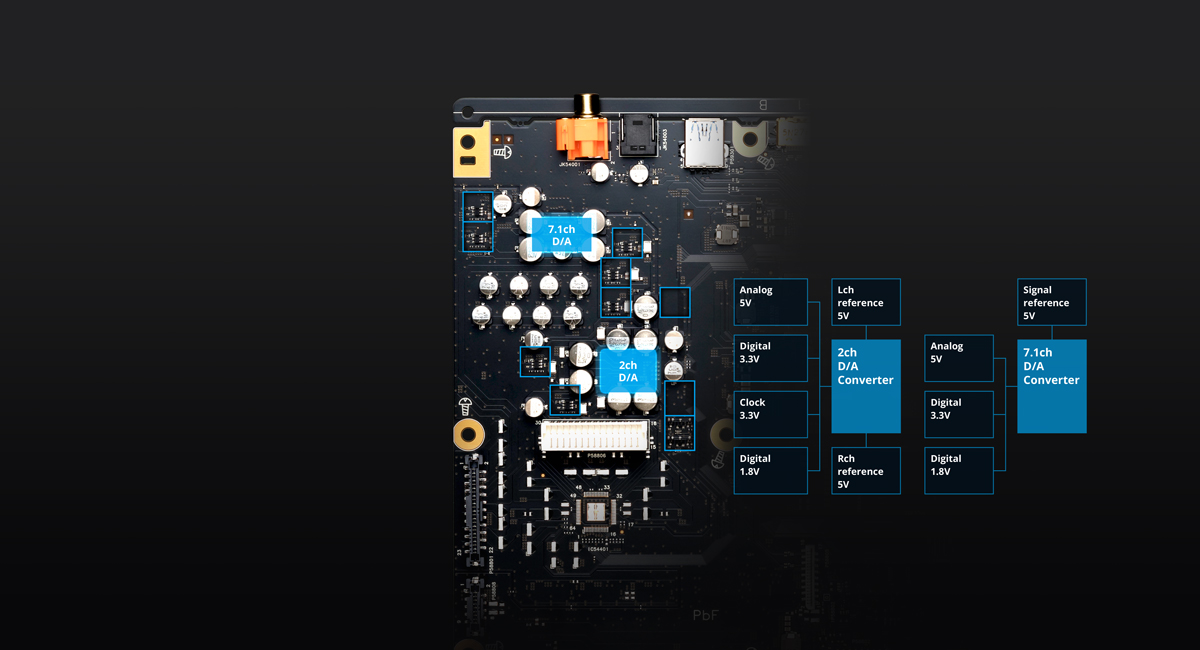

Stable voltage and current supply for sound with minimal distortion
10-Line Isolated DC Regulator Circuit The digital and analogue power supplies for the D/A converter are isolated. The analogue channel is further separated into 2 channels and 7.1 channels, and for the 2-channel output, the reference voltage of the left and right channels is isolated, making a 10-line regulator circuit and reducing mutual effects to improve distortion. Moreover, high-quality audio grade electrolytic capacitors are used in the analogue channel to minimise noise.

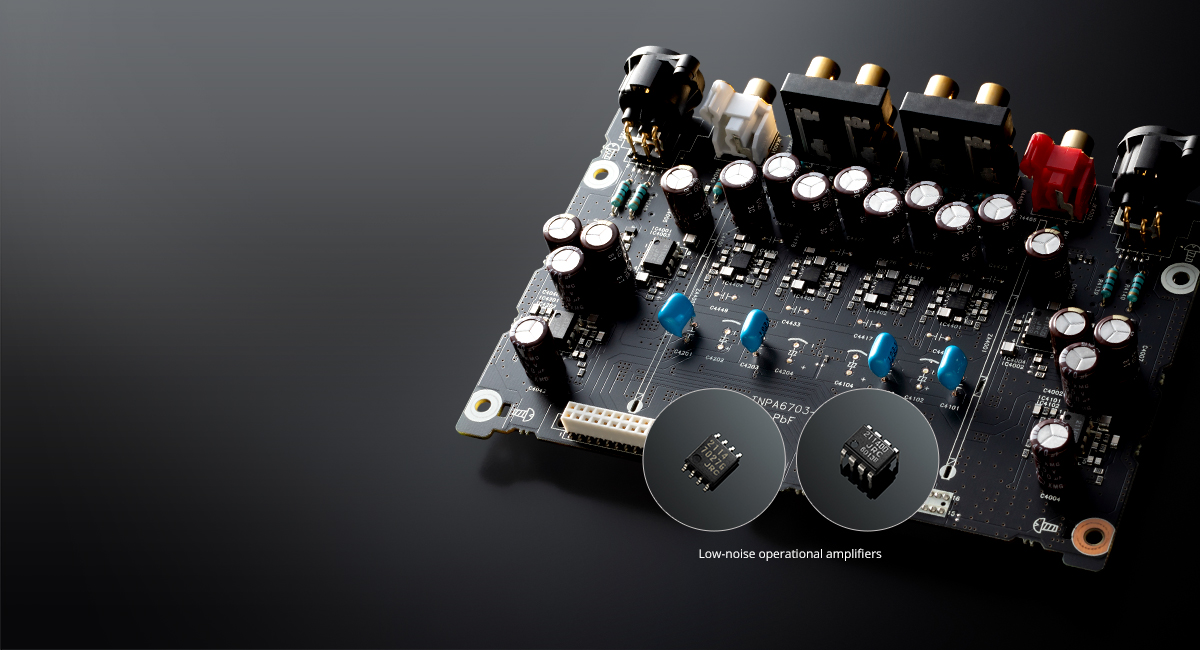

Carefully selected audio parts achieve high quality sound

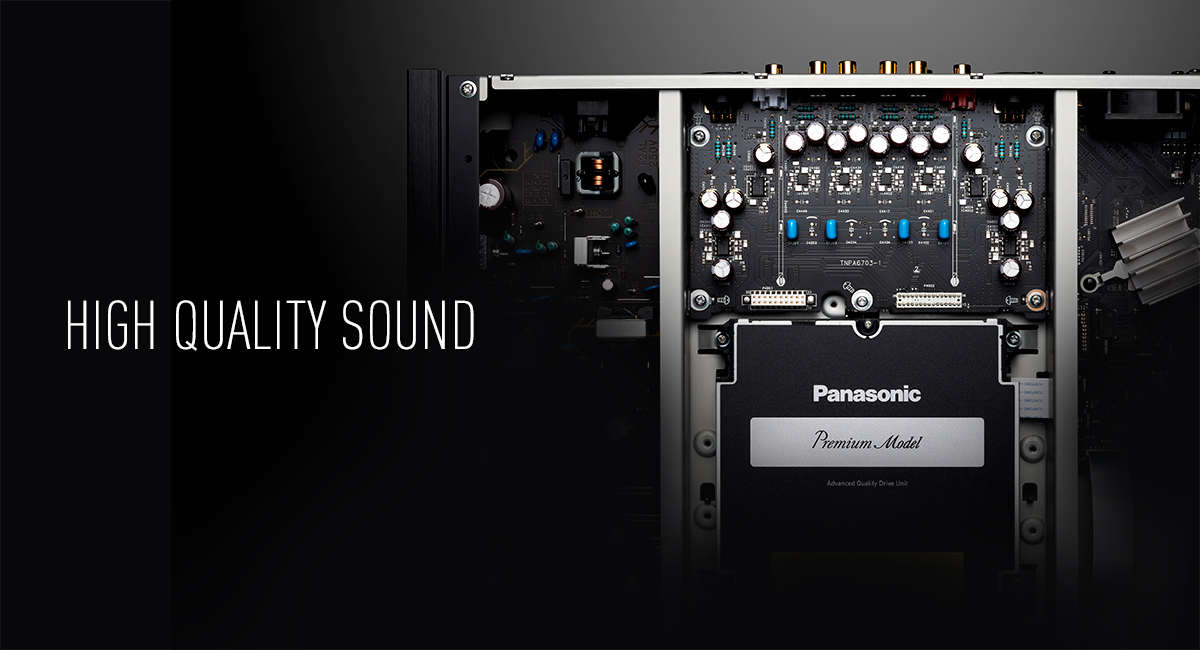

Special Circuit Board for Analogue Output The analogue circuits for 2 channel and 7.1 channel output are mounted onto special glass-epoxy circuit boards. Together with the use of quality components, such as low-noise operational amplifiers and audio grade electrolytic capacitors, a totally balanced signal transmission is achieved by using differential circuits all the way from the D/A converter output to the XLR output terminal.

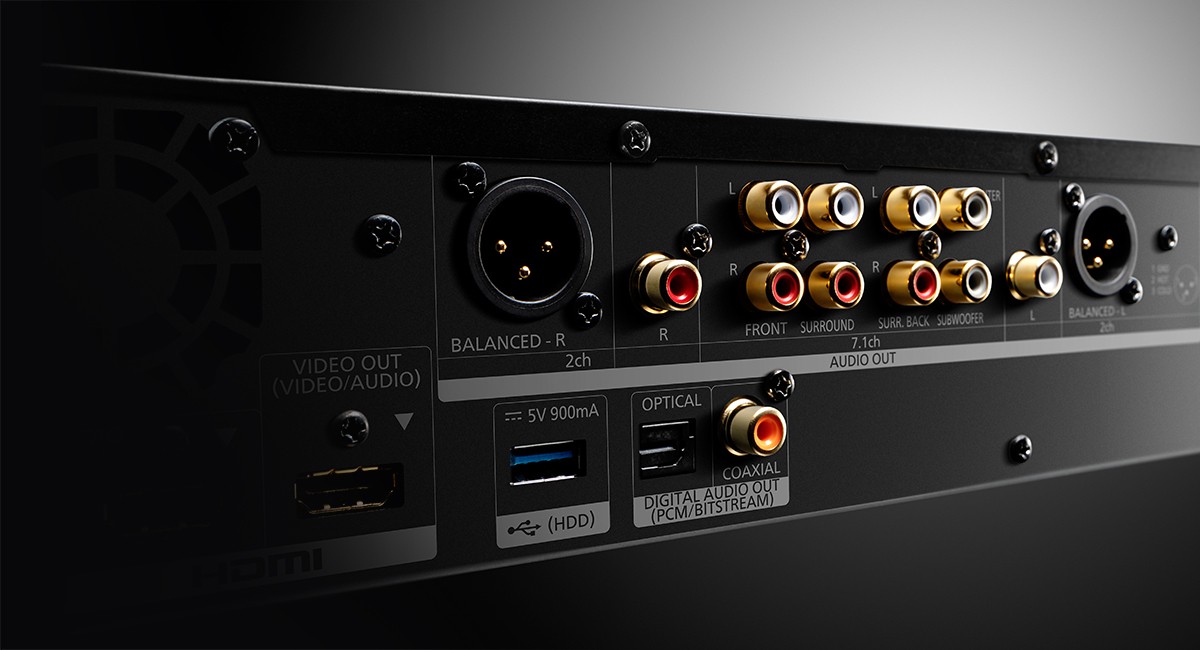

Versatile, high quality audio output terminals
The 2 channel and 7.1 channel output terminals are also separated. Moreover, the 2 channel output is equipped with a balanced XLR output terminal in addition to the RCA terminal.

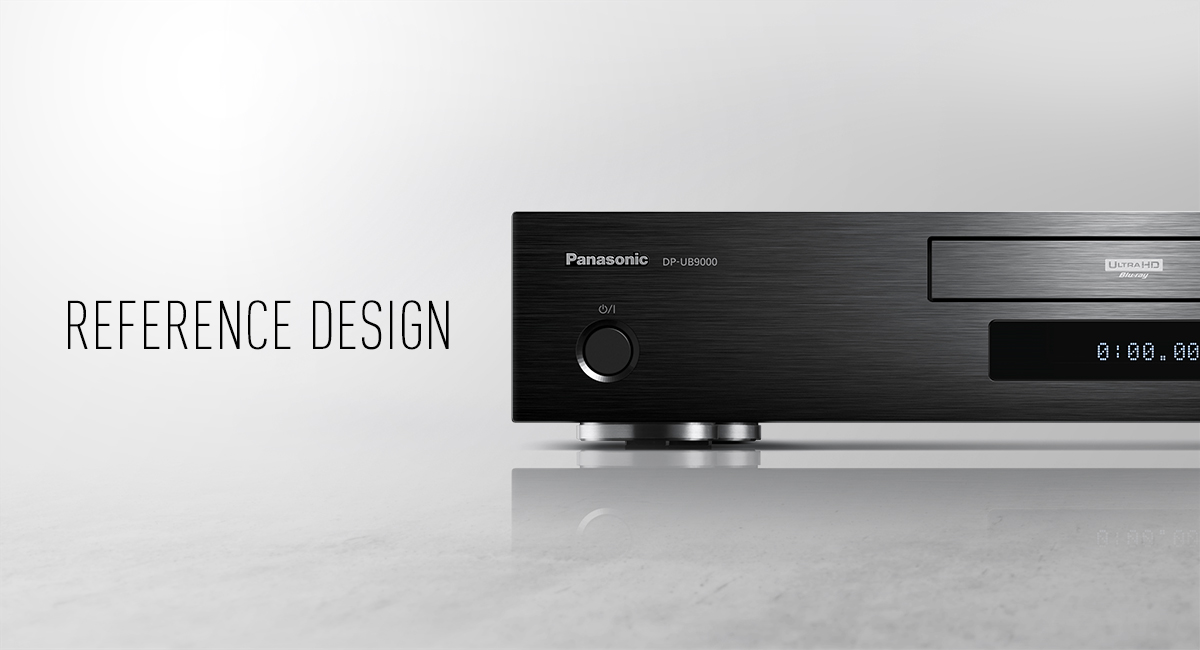

Stylish reference design for a high quality presence

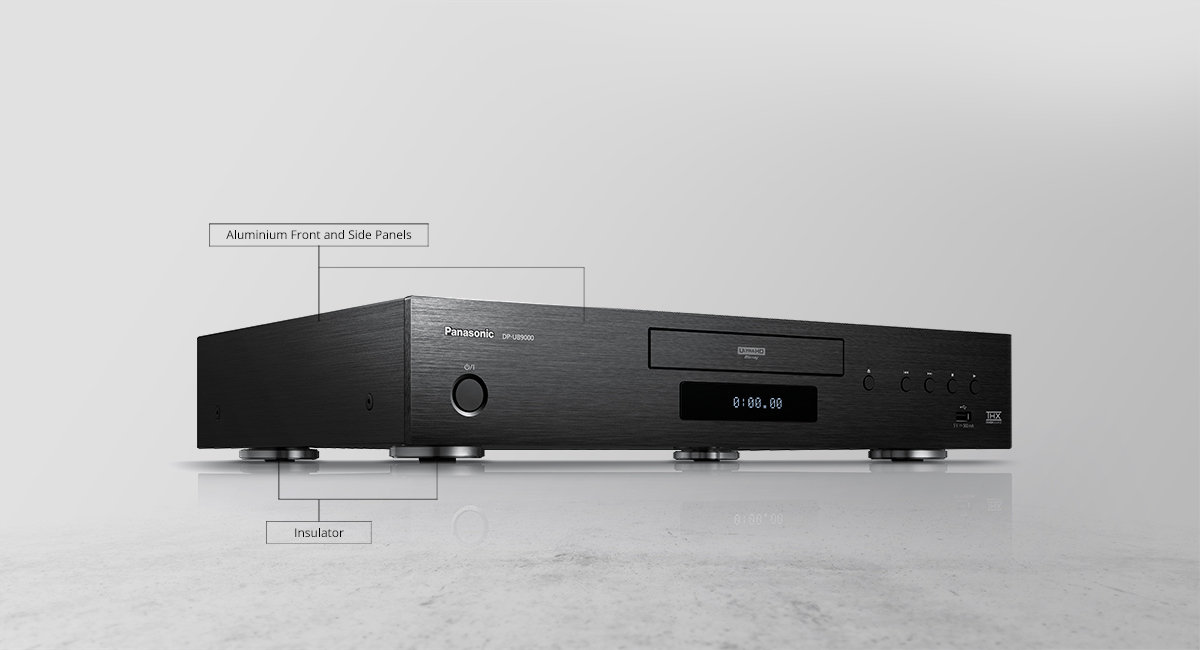

Thick aluminium treated with alumite is used for the front and side panels. This helps to reduce vibration and increase chassis rigidity to support high sound quality while providing a design that is ideally suited to a reference class model.
Online content also in 4K from now on
Compatible with 4K VOD Because 4K internet video distribution is now supported by content such as NETFLIX, Prime Video and YouTube, a wide variety of high-quality content is at your fingertips. The high-definition internet video signals are processed by Panasonic's original 4K High-Precision Chroma Processor to achieve crisp, beautiful images.
|BD-ROM - Ultra HD Blu-ray/ FULL HD 3D/ BD-Video||Yes|
|BD-RE/ BD-RE DL (Ver.3) - BDAV/ AVCHD/ AVCHD 3D/JPEG/ MPO||Yes|
|BD-R (Ver.1.3) / BD-R DL (Ver.2) - BDAV/ AVCHD/ AVCHD 3D/ MKV/ JPEG/ MPO||Yes|
|DVD - -Video||Yes|
|DVD-R*1/ DVD-R DL*1/ DVD-RW*1 - DVD-Video/ DVD Video Recording||Yes|
|DVD-R*1/ DVD-R DL*1/ DVD-RW*1 - AVCHD/ MKV||Yes/ Yes* (*DVD-R/ DVD-R DL)|
|DVD-R*1/ DVD-R DL*1/ DVD-RW*1 - FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3/ AIFF||Yes (DVD-R/ DVD-R DL)|
|DVD-R*1/ DVD-R DL*1/ DVD-RW*1 - JPEG/ MPO||Yes (DVD-R/ DVD-R DL)|
|+R*1/ +R DL*1/ +RW*1 - Video/ AVCHD||Yes|
|CD, CD-R/ -RW - CD-DA/ DTS-CD||Yes|
|CD, CD-R/ -RW - MKV||Yes (CD-R/ -RW)|
|CD, CD-R/ -RW - FLAC/ WAV/ ALAC/ WMA/ AAC/ MP3/ AIFF||Yes (CD-R/ -RW)|
|CD, CD-R/ -RW - JPEG/ MPO||Yes (CD-R/ -RW)|
|Dolby Digital/ TrueHD||Yes (Decode and Bitstream Output*2)|
|Dolby Digital Plus||Yes (Decode and Bitstream Output*2)|
|DTS-HD Master Audio/ DTS-HD High Resolution Audio||Yes (Decode and Bitstream Output*2)|
|Dolby Atmos/ DTS:X||Yes (Bitstream Output*2)|
|FLAC||Yes (Max. 192 kHz/ 24 bit)|
|WAV||Yes (Max. 384 kHz/ 32 bit)|
|ALAC||Yes (Max. 96 kHz/ 32 bit (7.1ch), 176.4/192 kHz/ 32 bit (5.1ch))|
|DSD (DFF, DSF)||Yes (2.8 MHz (2ch/ 5.1ch), 5.6 MHz (2ch/ 5.1ch), 11.2 MHz (2ch))|
|AIFF||Yes (Max. 384 kHz/ 32 bit (2ch))|
|Front||1 (USB 2.0 High Speed)|
|Rear||1 (USB 3.0 Super Speed)|
|Playback - FLAC/ WAV/ ALAC/ AIFF/ DSD (DFF, DSF)/ WMA/ AAC/ MP3||Yes (Gapless Playback : FLAC/WAV/AIFF/DSD(DFF,DSF))|
|Playback - MKV/ MP4 (H.264/HEVC), TS (MPEG-2/H.264/HEVC)||Yes|
|Playback - MPEG-2/ AVCHD/ AVCHD 3D||Yes|
|Playback - JPEG/ MPO||Yes|
|HIGH QUALITY PICTURE|
|HCX Processor for Ultra HD Blu-ray||Yes|
|HDR - 10+||Yes|
|HDR - Dolby Vision||Yes|
|HDR - Hybrid Log Gamma(HLG)||Yes|
|4K Up-scaling - 60p/50p/ 4:4:4 (HDMI2.0)||Yes*4*5|
|4K Up-scaling - 24p/ 25p||Yes*4*5|
|4K Direct Chroma Up-scaling||Yes*4|
|4K Networking (4K Video*6 Playback/ 4K JPEG Playback*4)||Yes|
|Picture Type Presets||(Normal/ Cinema/ Fine Cinema/ Retro Cinema/ Animation/ Live)*8|
|Block/ Randam/ Mosquito Noise Reduction||Yes|
|Video on Demand in HD Quality||Yes|
|Ultra HD Premium||Yes|
|HIGH QUALITY SOUND|
|Pure Audio on HDMI (HDMI Low Clock Jitter Process)||Yes|
|High Quality Network Audio Playback (DLNA)||Yes*10 (FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3)|
|High Clarity Sound Premium||Yes|
|Digital Tube Sound||Yes (Up to 192kHz/ 32 bit)|
|Surround Re-Master||Yes*11 (Up to 192kHz/ 32 bit)|
|Audio D/A Converter||Yes|
|Viewing Experience Controlled via Voice(Google Assitant/ Amazon Alexa)(Available for English)||Yes|
|Unit Display||Yes (Dot Matrix)|
|Subtitle Position/Brightness Adjustment||Yes|
|HDAVI Control 5 (VIERA Link)||Yes|
|Mirroring with Smartphone/Tablet||Yes*12|
|Wireless LAN System||Yes (Built-in) IEEE802.11 a/b/g/n/ac|
|Network Contents Playback (Client & Renderer)||Yes*10|
|External HDD Playback||Yes*14|
|Network Drive Access||Yes|
|HDMI Output||Yes (2)|
|Analogue Audio LR Output||Yes (Gold Plated)|
|Analogue Audio 7.1ch Output||Yes (Gold Plated)|
|LAN (Ethernet) Terminal||Yes (for Ultra HD Blu-ray, Network Contents Playback*10, BD-LiveTM*15, Internet Apps*13 and Firmware Update)|
|Power Supply||AC 120 V, 60 Hz|
|Power Consumption - Normal Use||39 W|
|Power Consumption - Standby (Quick Start Off)||9 W|
|Power Consumption - Standby (Quick Start Off)-Network Standby Off||0.3 W|
|Dimensions (W x H x D)||Approx. 430 x 81 x 300 mm*17|
