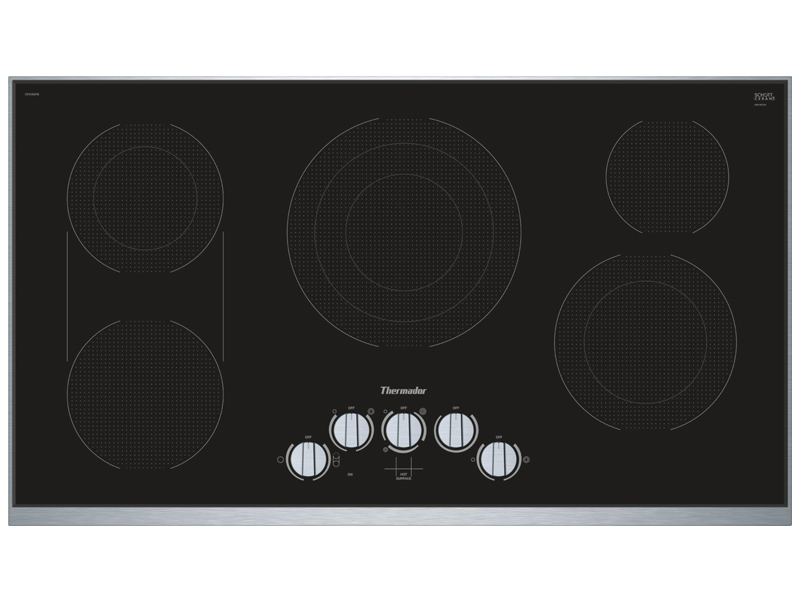

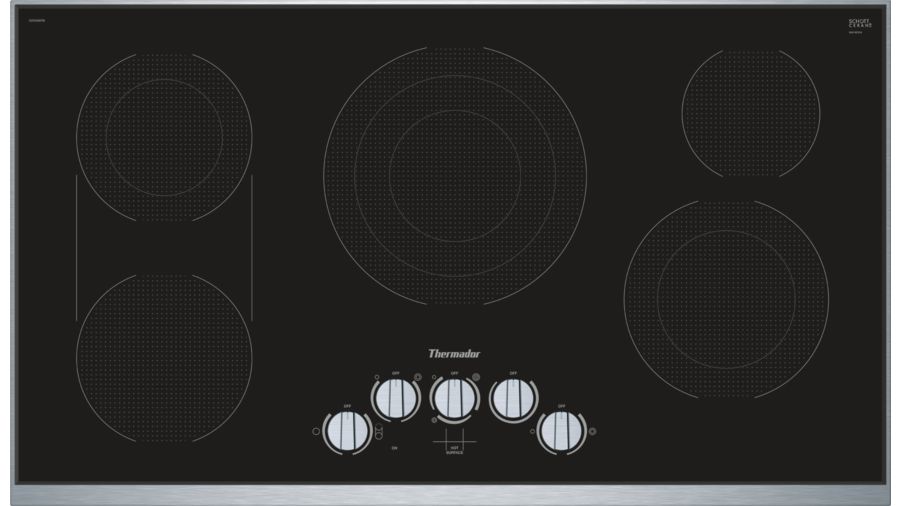

36" Thermador Masterpiece Series Electric Cooktop - CEM366TB
Thermador PROMO Dream Kitchen Sales Event See Details
Dream Kitchen Sales Event
Receive a Bonus gift with the purchase of a complete qualifying kitchen suite.
Literature
Masterpiece Series electric cooktops offer excellent performance, precise control and a sleek elegant profile
- Dual zone bridge element accomodates oblong cookware and multiple diameter sizes
- Triple zone center element allows you to match element to various sized cookware
- Variable 9-stage power setting offers a range of power from high heat to simmer

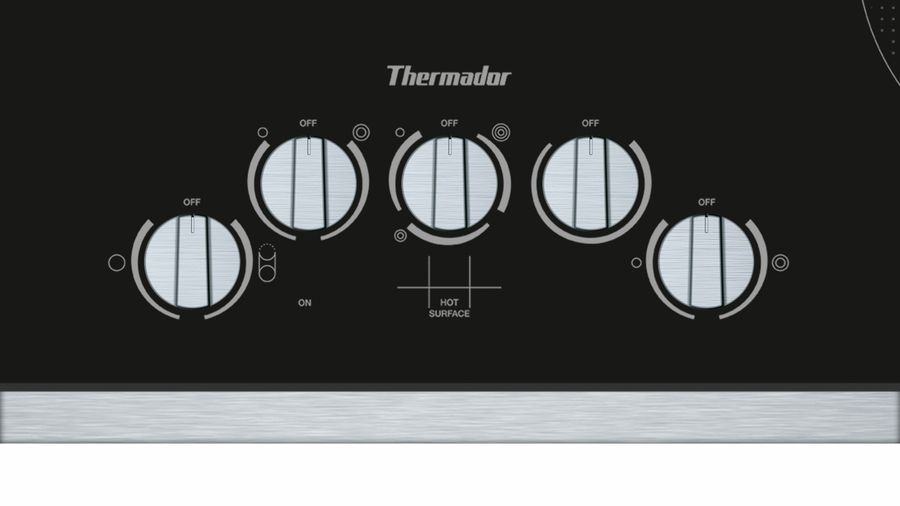

- Heavy-duty stainless steel metal knobs provide precise control
- Full stainless steel frame surrounds the cooktop surface
Technical Specifications
- Five elements and ten cooking zones provides the space and power for most cookware
- Dual zone bridge element connects front and rear elements to accomodates oblong cookware and multiple diameter sizes
- Large triple element offers the capability to use multiple pan sizes
- Variable 9-stage power settings
- Residual heat indicator shows you what elements are still hot
- Heavy-duty stainless steel metal knobs
- Full stainless steel frame
General | |
---|---|
Energy source | Electric |
Type of control | Fixed, front, Push-to-turn, Sword knobs |
Construction type | |
Color of frame | Stainless steel |
Color of surface | Black, Stainless steel |
Installation type | Built-in |
Design - line | Convenience frame |
Number of electric elements | 0 |
Number of electric cooking zones | 5 |
Type of frame | Convenience frame |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 5 |
Number of radiant elements | 5 |
Number of electric warming zones | 0 |
Size and Weight | |
Overall appliance dimensions (HxWxD) (mm) | 100.5 x 940 x 540 mm |
Net weight (kg) | 15.497 kg |
Cooking zone 1 | |
Dimension of heating element (mm) | 180 mm |
Location of 1st heating element | front left |
Power of heating element (W) | 1.7 kW |
Type of heating element | Radiant heating |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Dimension of 3rd heating element (mm) | 180 ; 120 mm |
Location of 3rd heating element | back left |
Power of 3rd heating element (W) | 0.7 ; 1.7 kW |
Type of 3rd heating element | Radiant heating |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Dimension of 5th heating element (mm) | 140 mm |
Location of 5th heating element | back right |
Power of 5th heating element (W) | 1.2 kW |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Dimension of 7th heating element (mm) | 210 ; 140 mm |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 1 ; 2.2 kW |
Type of 7th heating element | Radiant heating |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Dimension of 9th heating element (mm) | 140 ; 210 ; 270 mm |
Location of 9th heating element | front centre/cent |
Power of 9th heating element (kW) | 1.05 ; 2.2 ; 3.08 kW |
Type of 9th heating element | Radiant heating |
Safety | |
Power on indicator | Yes |
Residual heat indicator | Separate |
Main on/off switch | - |
Connection | |
Power cord length (cm) | 96 cm |
Watts (W) | 10,400 W |
Energy source | Electric |
Frequency (Hz) | 60 Hz |
